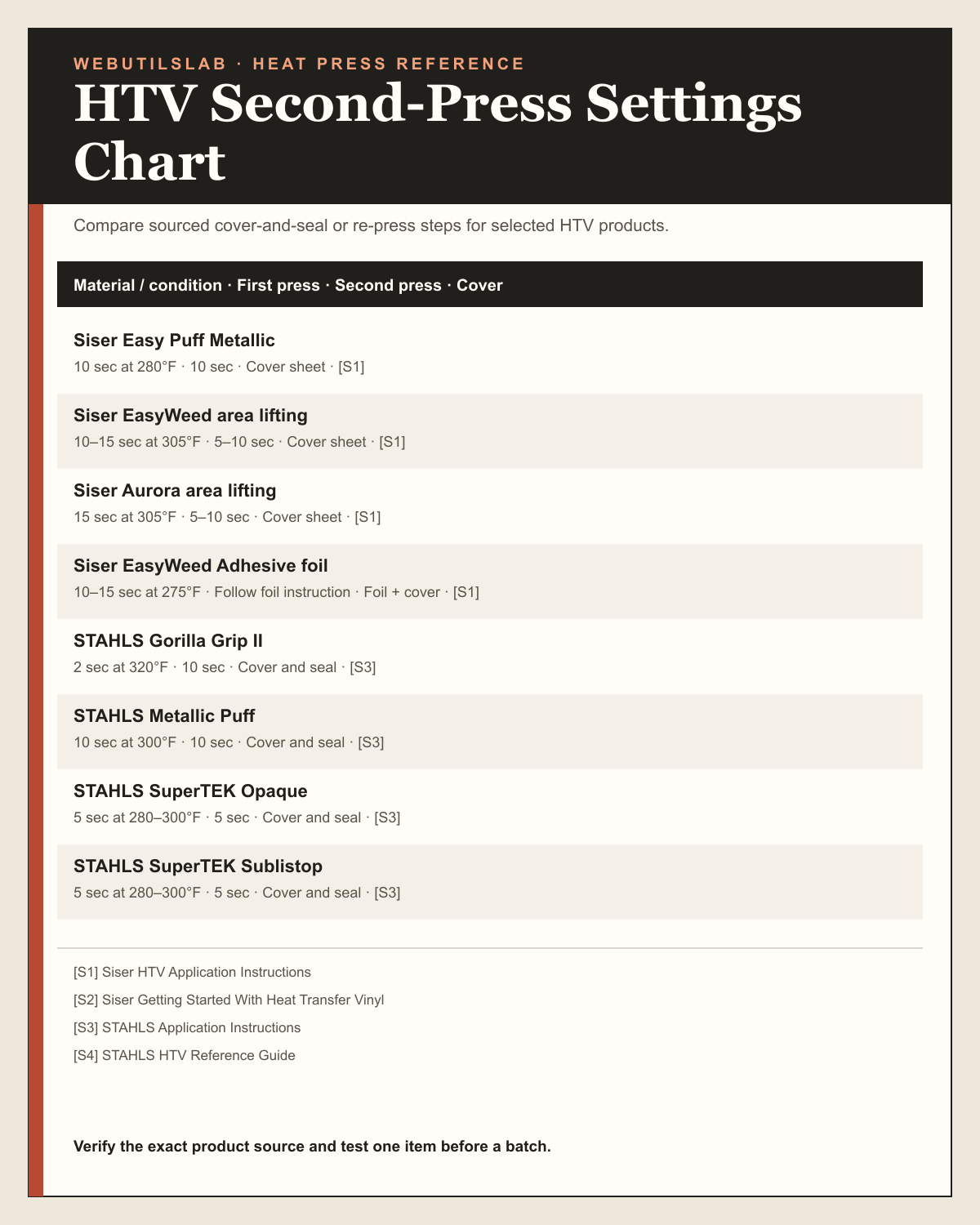

HTV Second-Press Settings Chart
A second press is product-specific; this table separates required cover-and-seal steps from short corrective re-press guidance.
| Material / condition | First press | Second press | Cover | Source |
|---|---|---|---|---|
| Siser Easy Puff Metallic | 10 sec at 280°F | 10 sec | Cover sheet | [S1] |
| Siser EasyWeed area lifting | 10–15 sec at 305°F | 5–10 sec | Cover sheet | [S1] |
| Siser Aurora area lifting | 15 sec at 305°F | 5–10 sec | Cover sheet | [S1] |
| Siser EasyWeed Adhesive foil | 10–15 sec at 275°F | Follow foil instruction | Foil + cover | [S1] |
| STAHLS Gorilla Grip II | 2 sec at 320°F | 10 sec | Cover and seal | [S3] |
| STAHLS Metallic Puff | 10 sec at 300°F | 10 sec | Cover and seal | [S3] |
| STAHLS SuperTEK Opaque | 5 sec at 280–300°F | 5 sec | Cover and seal | [S3] |
| STAHLS SuperTEK Sublistop | 5 sec at 280–300°F | 5 sec | Cover and seal | [S3] |
How to use the HTV Second-Press Settings Chart
- Identify the exact material or garment.
- Read the complete row and its bracketed source key.
- Open the source and confirm the current manufacturer instruction.
- Run and record one test before repeating the setup.
Real-world examples
First sample
Inputs
- Exact product
- One sourced row
Result
A single test setup
Production check
Do not generalize the row to an unnamed substitute.
Units and parameters
Keep units consistent from design setup through pressing notes. When the tool provides a preset, use it as a planning value and replace it with the actual garment or blank measurement when possible.
| Input or rule | What it changes |
|---|---|
| Material / condition | Read the material / condition value in the same row; do not mix columns from different products. |
| First press | Read the first press value in the same row; do not mix columns from different products. |
| Second press | Read the second press value in the same row; do not mix columns from different products. |
| Cover | Read the cover value in the same row; do not mix columns from different products. |
| Source | Read the source value in the same row; do not mix columns from different products. |
Rule and assumptions
Use the row for the exact named material or garment. Bracketed source keys identify the manufacturer or supplier table behind that row.
- Values apply to the named product or blank, not every material in the same category.
- Measure the actual garment or blank and test one item before a production batch.
- Press calibration, platen contact, seams, moisture, and finish can change a result.
Use this tool for
- Preparing a repeatable bench reference
- Comparing product-specific values before a test
- Recording the source used for an order
Worked example
Inputs
- One exact table row
- The linked source revision
- The actual blank or garment
Result
A sourced starting value and a written test note
When to use this
Before cutting or pressing a new product combination.
What to check before pressing
Confirm product name, substrate, source revision, press calibration, and platen contact.
Quick reference chart
| Use case | Starting point | Check before pressing |
|---|---|---|
| Siser Easy Puff Metallic | 10 sec at 280°F · 10 sec · Cover sheet | [S1] |
| Siser EasyWeed area lifting | 10–15 sec at 305°F · 5–10 sec · Cover sheet | [S1] |
| Siser Aurora area lifting | 15 sec at 305°F · 5–10 sec · Cover sheet | [S1] |
| Siser EasyWeed Adhesive foil | 10–15 sec at 275°F · Follow foil instruction · Foil + cover | [S1] |
| STAHLS Gorilla Grip II | 2 sec at 320°F · 10 sec · Cover and seal | [S3] |
| STAHLS Metallic Puff | 10 sec at 300°F · 10 sec · Cover and seal | [S3] |
| STAHLS SuperTEK Opaque | 5 sec at 280–300°F · 5 sec · Cover and seal | [S3] |
| STAHLS SuperTEK Sublistop | 5 sec at 280–300°F · 5 sec · Cover and seal | [S3] |
Common mistakes
- Using a similarly named product instead of the exact row.
- Skipping the linked source when a manufacturer revises instructions.
- Repeating a batch before checking one sample and platen contact.
Sources
Table rows use the source keys shown in brackets. Recheck the linked manufacturer instructions for the exact material, blank, and press before production.
- [S1] Siser HTV Application Instructions — Manufacturer time, temperature, pressure, and peel instructions.
- [S2] Siser Getting Started With Heat Transfer Vinyl — Manufacturer guidance on testing time, temperature, and pressure.
- [S3] STAHLS Application Instructions — Manufacturer application table.
- [S4] STAHLS HTV Reference Guide — Manufacturer product and fabric reference.
FAQ
Are the numbers in this htv second-press settings chart universal?
No. Each row is tied to the named material or garment and its bracketed source. Recheck the source and test the actual item.
Why do I need a test when the row has a source?
A source establishes the intended starting value. Press calibration, substrate variation, seams, moisture, and finish still affect the physical result.
How should I record a changed setting?
Keep the source value and the successful test value together with the product name, date, press, pressure method, and blank lot.
